Description
Reproduction for:

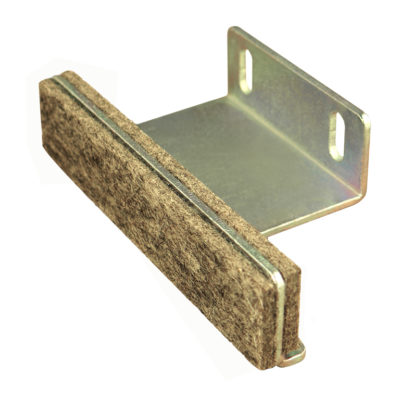

RECORD Floor slide right side 35 mm Art. No.: 10065
If the centre distance from wall to centre of the moveable leaf groove is 36mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the centre of the bearing surface of the floor guide does also amount to 36mm.
The floor guide shows the following geometries:
Width: 48 mm
Height: 25 mm
Length: 100 mm
3 x Ø 6,8 mm bore hole countersunk
2 x Ø 6,8 mm bore hole
